Fresas(Con placa intercambiable)

WJX09_SCREW-IN_INCH


WJX09UR2202AM1645 EDP:10618615


Forma Serie Geometría Ficha de herramientas Tipo de fresa Característica Estructura
WJX09 Fresa con radio
  • Estándar
  • Geometría en doble Z
  • Evacuación fluida de virutas.
  • El excepcional desprendimiento de viruta reduce el ruido de corte.
 Con placa intercambiable
WJX09_SCREW-IN Fresa con radio
  • Fijación por tornillo
  • Geometría en doble Z
  • Evacuación fluida de virutas.
  • El excepcional desprendimiento de viruta reduce el ruido de corte.
 Con placa intercambiable

Información sobre productos

  • Geometría en doble Z
  • Evacuación fluida de virutas.
  • El excepcional desprendimiento de viruta reduce el ruido de corte.

The actual product may differ from the displayed image.

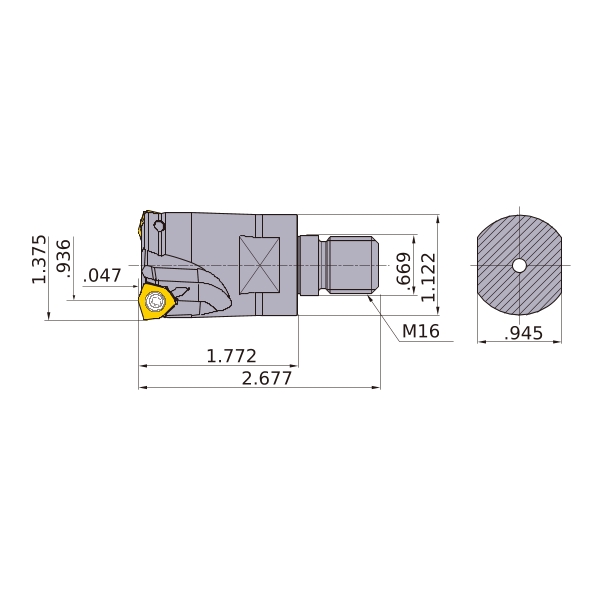

For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I
AZ .047
DC .936
DCX 1.375
DCON .669
DCSFMS 1.122
RMPX 3.6
LF 1.772
OAL 2.677
S10 .945
APMX .047
GAMP -6
GAMF -11
WT 0.6
CRKS M16
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
RPMX 25600
