Fresas(Con placa intercambiable)

WWX200_INCH
（PARA PLANEADO DE 90º）

WWX200UR2003FA16S EDP:22863447

Información sobre productos

  • Placas trigonales de doble cara con seis filos de corte
  • Una geometría innovadora genera bajas fuerzas de corte.
  • Las placas multicorte y autocolocables permiten un mecanizado sólido y fiable

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia

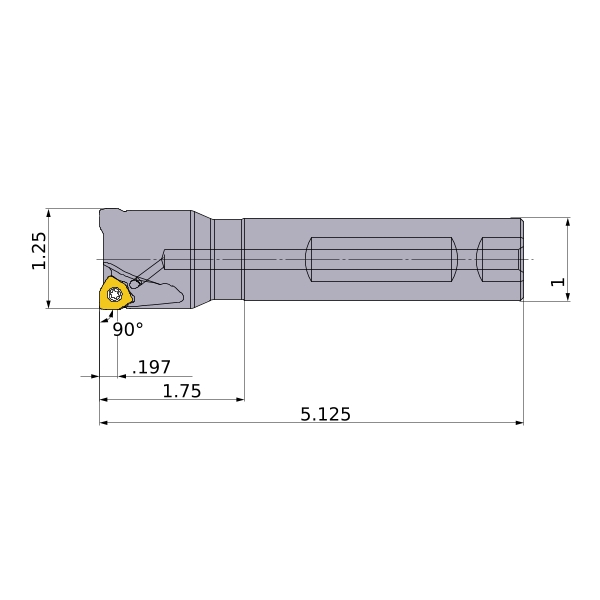

Unidad de longitud I
DC 1.25
DCON 1
KAPR 90°
LF 5.125
LH 1.75
APMX .197
GAMP -6°
GAMF -15°
WT 1.1
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
RPMX 25100
