Fresa frontal >AJX_INCH >AJXU14R0304C

Fresa frontal

AJX14_INCH
（FRESADO MULTIFUNCIONAL）

AJXU14R0304C EDP:241162


Forma Serie Ficha de herramientas Característica Ángulo de posición
AJX
  • Placa positiva de baja resistencia de 15°.
  • Para corte de alto avance.
  • Estandarización de agujeros de refrigeración.
  • Diseño de placa especial gracias al uso de 3 filos de corte.
  • Alta rigidez gracias a la estructura de fijación doble.

AJX_MM
  • Placa positiva de baja resistencia de 15°.
  • Alta rigidez gracias a la estructura de fijación doble.
  • Para corte de alto avance.
  • Diseño de placa especial gracias al uso de 3 filos de corte.
  • Estandarización de agujeros de refrigeración.


Información sobre productos

  • Diseño de placa especial gracias al uso de 3 filos de corte.
  • Alta rigidez gracias a la estructura de fijación doble.
  • Para corte de alto avance.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I

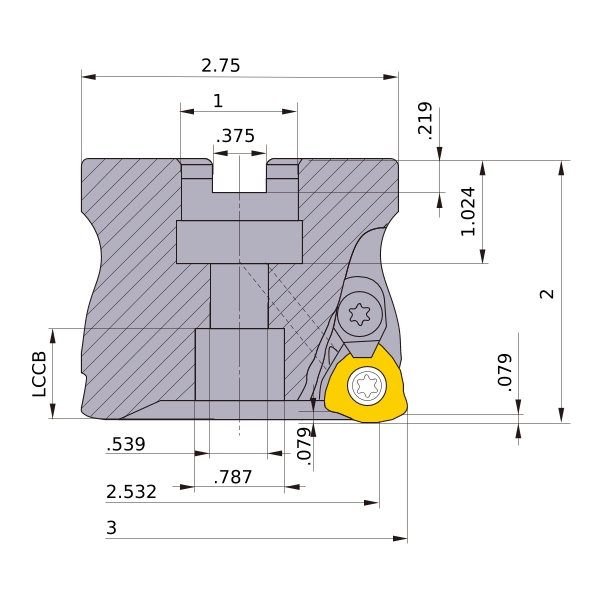

AZ .079
DC 2.532
DCX 3
DCON 1
DCSFMS 2.75
DAH .539
DCCB .787
RMPX 1.8
L8 .219
LF 2
CBDP 1.024
KWW .375
APMX .079
GAMP +8°
GAMF -3°
Peripheral effective cutting edge count: ZEFP 4
