Mitsubishi Materials Catálogo virtual | Información sobre productos | Fresa frontal | APX3000-B_INCH

Placa positiva de baja resistencia de 11°.
Pared vertical de alta calidad y gran precisión.

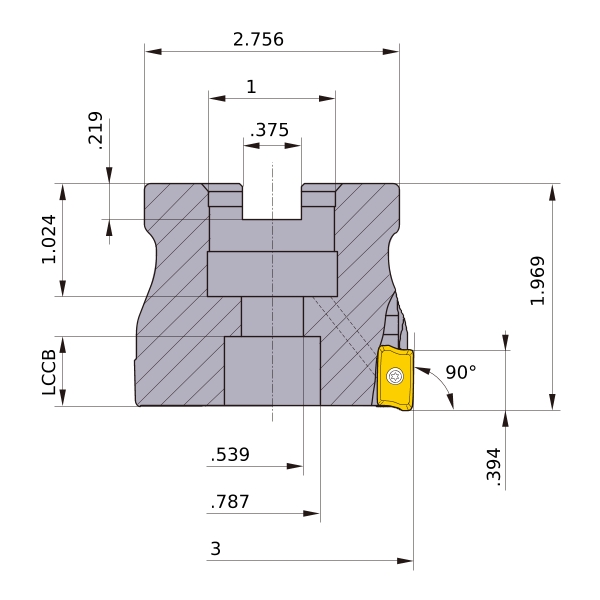

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Diámetro ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

N.º de unidades de pedido

1

Mano

R

Existencia

Unidad de longitud

I

DC

3

DCON

1

DCSFMS

2.756

DAH

.539

DCCB

.787

KAPR

90°

RMPX

1

L8

.219

LF

1.969

CBDP

1.024

KWW

.375

APMX

.394

GAMP

+22°

GAMF

+27°

Peripheral effective cutting edge count: ZEFP

9
