Fresa frontal

AXD4000_INCH
（Para aleación de aluminio）

AXD4000UR1502B EDP:577707


Forma Serie Ficha de herramientas Característica Ángulo de posición
AXD4000
  • Pueden lograrse velocidades de husillo más elevadas.
  • Placas de baja resistencia.
  • Fresado multifuncional
  • Pueden lograrse velocidades de husillo más elevadas.
  • Excelente precisión en pared.
AXD4000A
  • Placas de baja resistencia.
  • Fresado multifuncional
  • Pueden lograrse velocidades de husillo más elevadas.
  • Excelente precisión en pared.
AXD4000_MM
  • Pueden lograrse velocidades de husillo más elevadas.
  • Placas de baja resistencia.
  • Fresado multifuncional
  • Pueden lograrse velocidades de husillo más elevadas.
  • Excelente precisión en pared.

Información sobre productos

  • Pueden lograrse velocidades de husillo más elevadas.
  • Placas de baja resistencia.
  • Fresado multifuncional
  • Pueden lograrse velocidades de husillo más elevadas.
  • Excelente precisión en pared.

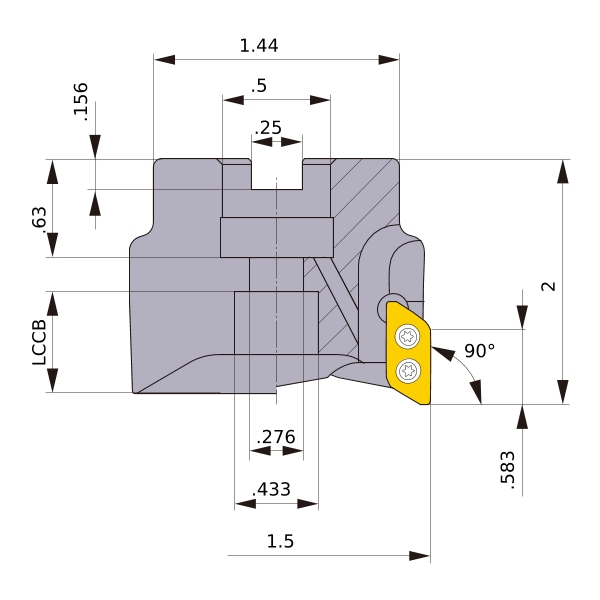

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I
DC 1.5
DCON .5
DCSFMS 1.44
DAH .276
DCCB .433
KAPR 90°
L8 .156
LF 2
CBDP .63
KWW .25
APMX .583
GAMP +14°
GAMF +21°
WT 0.6
Peripheral effective cutting edge count: ZEFP 2
RPMX 41000
