Fresa frontal >AHX640S_INCH >AHX640SUL2505AA

Fresa frontal

AHX640S_INCH
（MECANIZADO GENERAL）

AHX640SUL2505AA EDP:572703


Forma Serie Ficha de herramientas Característica Ángulo de posición
AHX640S
  • Placa heptagonal de doble cara
  • Placa de 14 lados.
  • El diseño de paso fino permite el fresado de alto avance.
AHX640S_MM
  • Placa heptagonal de doble cara
  • Placa de 14 lados.
  • El diseño de paso fino permite el fresado de alto avance.

Información sobre productos

  • Placa heptagonal de doble cara
  • Placa de 14 lados.
  • El diseño de paso fino permite el fresado de alto avance.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano L
Existencia

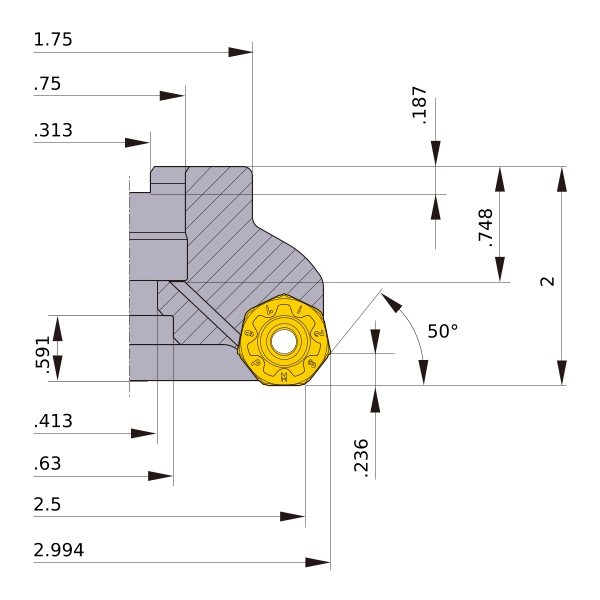

Unidad de longitud I
DC 2.5
DCX 2.994
DCON .75
DCSFMS 1.75
DAH .413
DCCB .63
KAPR 50°
L8 .187
LF 2
CBDP .748
LCCB .591
KWW .313
APMX .236
GAMP -6°
GAMF -5°
WT 1.8
Peripheral effective cutting edge count: ZEFP 5
