Fresa frontal >ARP_INCH >ARP5UPR1504SA

Fresa frontal

ARP_INCH
（Fresa con placa redonda para materiales difíciles de cortar）

ARP5UPR1504SA EDP:10527542


Forma Serie Ficha de herramientas Característica Ángulo de posición
ARP
  • Resistente sistema de sujeción

ARP_MM
  • Resistente sistema de sujeción


Información sobre productos

  • Resistente sistema de sujeción

The actual product may differ from the displayed image.

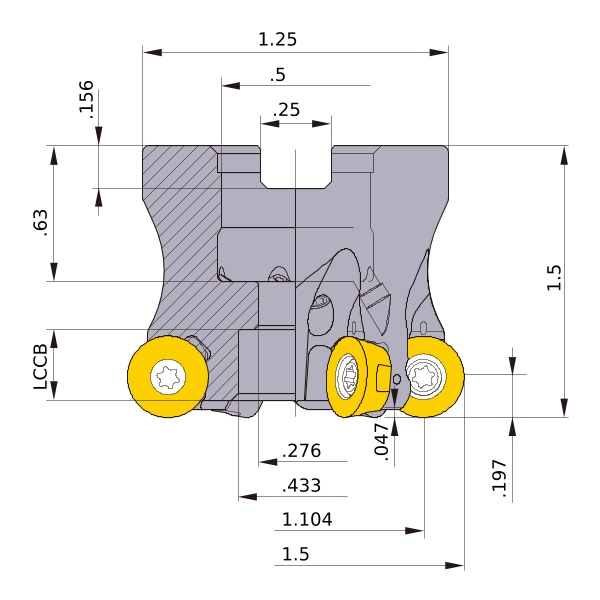

For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I
A1 .079
AZ .047
DC 1.104
DCX 1.5
DCON .5
DCSFMS 1.25
DAH .276
DCCB .433
RMPX 2.8°
L8 .156
LF 1.5
CBDP .63
KWW .25
APMX .197
GAMP +4°
GAMF -6°
WT 0.331
R 5
Peripheral effective cutting edge count: ZEFP 4
Modelo 2D (DXF)
Nombre datos CAD Descargar
ARP5UPR1504SA
