Fresa frontal >WJX09_INCH >WJX09UR2.5005CA

Fresa frontal

WJX09_INCH


WJX09UR2.5005CA EDP:10618530


Forma Serie Ficha de herramientas Característica Ángulo de posición
WJX09
  • Geometría en doble Z
  • Evacuación fluida de virutas.
  • El excepcional desprendimiento de viruta reduce el ruido de corte.

WJX09_MM
  • Geometría en doble Z
  • Evacuación fluida de virutas.
  • El excepcional desprendimiento de viruta reduce el ruido de corte.


Información sobre productos

  • Geometría en doble Z
  • Evacuación fluida de virutas.
  • El excepcional desprendimiento de viruta reduce el ruido de corte.

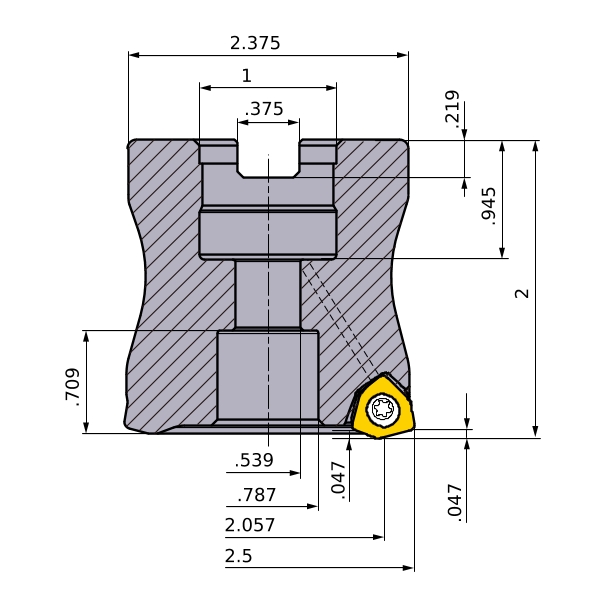

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I
AZ .047
DC 2.057
DCX 2.5
DCON 1
DCSFMS 2.375
DAH .539
DCCB .787
RMPX 1.4°
L8 .219
LF 2
CBDP .945
LCCB .709
KWW .375
APMX .047
GAMP -6°
GAMF -10°
WT 1.7
Cutting item count: CICT 5
Peripheral effective cutting edge count: ZEFP 5
RPMX 17200
