Ranurado Serie GY

GYA_D90_INCH
（Herramienta tipo 90º）

6K1R3E1

Información sobre productos

  • Fijación de placas muy fiable
  • Larga vida de la placa y gran precisión para una amplia variedad de aplicaciones de mecanizado
  • Innovador sistema Tri Lock

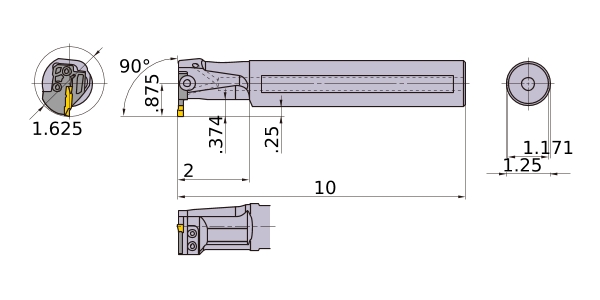

  • Estas dimensiones se dan cuando se utiliza una placa de calibrado.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Mano R
Existencia
Unidad de longitud I
DMIN 1.625
DCON 1.25
LF 10
CDX .374
LDRED 2
WF .875
H 1.171
CW .098
WF2 .25
Peripheral effective cutting edge count: ZEFP 1
Portaherramientas modular GYDRUS20S90C-M20L
Lama modular GYM20LA-E10
Modelo 2D (DXF)
Nombre datos CAD Descargar
6K1R3E1
