Ranurado Serie GY

GYH00D_INCH
（Herramienta tipo 00º）

4K1R4D11

Información sobre productos

  • Larga vida de la placa y gran precisión para una amplia variedad de aplicaciones de mecanizado
  • Fijación de placas muy fiable
  • Innovador sistema Tri Lock
  • Estas dimensiones se dan cuando se utiliza una placa de calibrado.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Mano R
Existencia
Unidad de longitud I

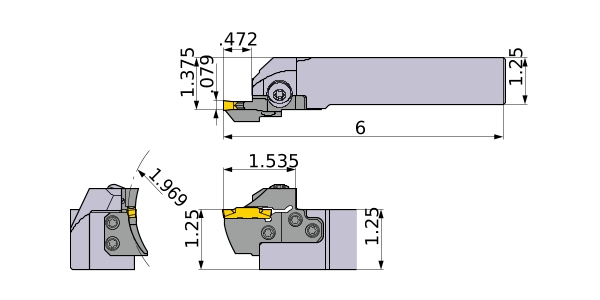

DAXN 1.575
CUTDIA 1.969
B 1.25
L4 1.241
LF 6
LH 1.535
CDX .472
WF 1.375
H 1.25
HF 1.25
CW .079
Peripheral effective cutting edge count: ZEFP 1
Portaherramientas modular GYHRUS20D00-M25R
Lama modular GYM25RD-D12-040
Modelo 2D (DXF)
Nombre datos CAD Descargar
4K1R4D11
