Ranurado Serie GY

GYH50C_INCH


3H1L4H1

Información sobre productos

  • Excelente relación calidad-precio con un portaherramientas compartido.
  • Fijación de placas muy fiable
  • Larga vida de la placa y gran precisión para una amplia variedad de aplicaciones de mecanizado
  • Innovador sistema Tri Lock

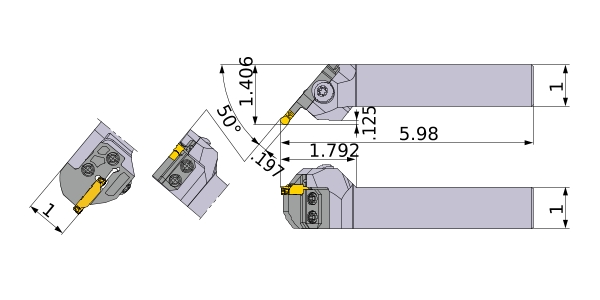

  • Estas dimensiones se dan cuando se utiliza una placa de calibrado.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Mano L
Existencia
Unidad de longitud I
CUTDIA .787
B 1
LF 5.98
LH 1.792
CDX .02
WF 1.406
H 1
HF 1
CW .197
WF2 .125
Peripheral effective cutting edge count: ZEFP 1
Portaherramientas modular GYHLUS16D50-M25R
Lama modular GYM25RC-H005
Modelo 2D (DXF)
Nombre datos CAD Descargar
3H1L4H1
CAD
