Small tools >M-FSTUP_INCH >M-FSTUPR-122-C

Small tools

M-FSTUP_INCH
（Dimple Bar）

M-FSTUPR-122-C EDP:307281

Información sobre productos

  • El diámetro mínimo de corte es de 390 pulgadas.
  • Placa positiva, 5°, 11°.
  • Excelente resistencia a la vibración debido a su cabeza dimple ligera.
  • Optimización de la evacuación de las virutas gracias a dos canales especiales.
  • l/d es de 3 a 6 veces el diámetro.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI JX12S-STUPR2
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I

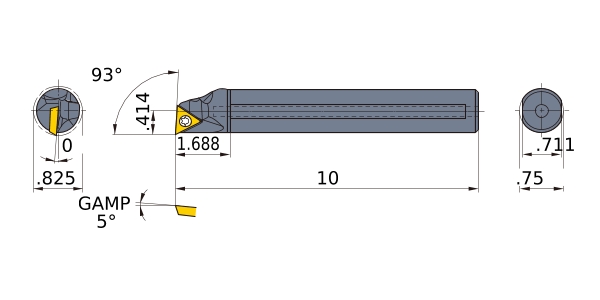

DMIN .825
DCON .75
KAPR 93°
LF 10
LDRED 1.688
WF .414
H .711
GAMF 0
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insertar número TP__22
