Small tools >M-FSVJC_INCH >M-FSVJCL-101.5-C

Small tools

M-FSVJC_INCH
（Dimple Bar）

M-FSVJCL-101.5-C EDP:307686

Información sobre productos

  • El diámetro mínimo de corte es de 390 pulgadas.
  • Placa positiva, 5°, 11°.
  • Excelente resistencia a la vibración debido a su cabeza dimple ligera.
  • Optimización de la evacuación de las virutas gracias a dos canales especiales.
  • l/d es de 3 a 6 veces el diámetro.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI JX10S-SVJCL1.5
N.º de unidades de pedido 1
Mano L
Existencia
Unidad de longitud I

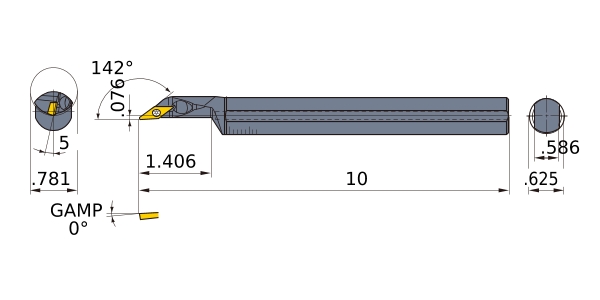

DMIN .781
DCON .625
KAPR 142°
LF 10
LDRED 1.406
WF .076
H .586
GAMF 5
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insertar número VC__1.51.5
Modelo 2D (DXF)
Nombre datos CAD Descargar
M-FSVJCL-101_5-C
CAD
