Small tools >M-FSWUB_INCH >M-FSWUBR-051.5-C

Small tools

M-FSWUB_INCH
（Dimple Bar）

M-FSWUBR-051.5-C EDP:307504

Información sobre productos

  • Optimización de la evacuación de las virutas gracias a dos canales especiales.
  • l/d es de 3 a 6 veces el diámetro.
  • El diámetro mínimo de corte es de 390 pulgadas.
  • Placa positiva, 5°, 11°.
  • Excelente resistencia a la vibración debido a su cabeza dimple ligera.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI JX05K-SWUBR1.5
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I

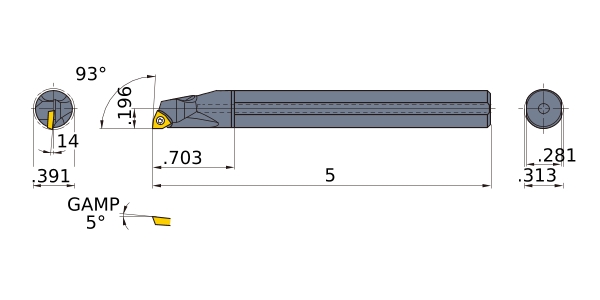

DMIN .391
DCON .313
KAPR 93°
LF 5
LDRED .703
WF .196
H .281
GAMF 14
RE .008
Peripheral effective cutting edge count: ZEFP 1
Insertar número WB__1.51.5
