Fresas integrales

MS4XL_INCH
（4 hélices, Cuello largo）

MS4XLD1/4N1500 EDP:317403

Información sobre productos

  • Fresa de punta cuadrada y cuello largo de 4 hélices para uso general..

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Existencia

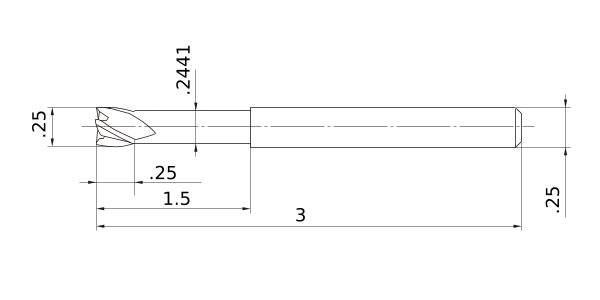

Unidad de longitud I
DC .25
DCON .25
DN .2441
PSIR 30
LF 3
LU 1.5
APMX .25
FHA 30°
Peripheral effective cutting edge count: ZEFP 4
Tolerancia máx. de diámetro de filo de corte 0
Tolerancia mín. de diámetro de filo de corte -.0008
Recubrimiento MS
Modelo Ligth 3D (STP,STL)
Nombre datos CAD Descargar
MS4XLD1-4N1500
CAD
