Fresas integrales

VQMHVRB_INCH
（Fresa tórica, longitud de corte media, 4 hélices, ángulo de hélice variable）

VQMHVRBD5/16R010 EDP:614125


Forma Serie Geometría Tipo de fresa Característica Estructura
VQMHVRB Fresa con radio
  • Longitud media
  • Las fresas con control de vibración VQ reducen la vibración y ofrecen un rendimiento estable en materiales difíciles de cortar y aplicaciones con voladizos de gran tamaño.
 Metal Duro
VQMHVRBF Fresa con radio
  • Longitud media
  • Fresa, 4 hélices, ángulo de hélice variable para menor vibración al mecanizar materiales difíciles de cortar.
  • Ideal para mecanizado de acabados.
 Metal Duro

Información sobre productos

  • Las fresas con control de vibración VQ reducen la vibración y ofrecen un rendimiento estable en materiales difíciles de cortar y aplicaciones con voladizos de gran tamaño.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Existencia
Unidad de longitud I

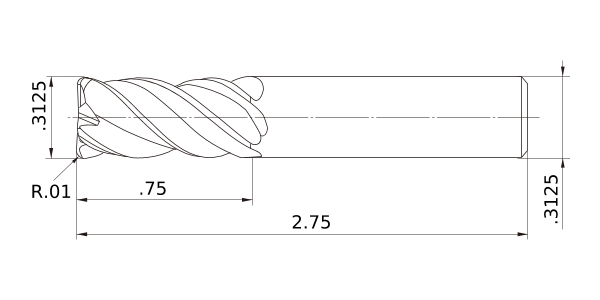

DC .3125
DCON .3125
LF 2.75
APMX .75
RE .01
Peripheral effective cutting edge count: ZEFP 4
Tolerancia radial - -.0006
Tolerancia radial + .0006
Tolerancia máx. de diámetro de filo de corte 0
Tolerancia mín. de diámetro de filo de corte -.0008
Recubrimiento VQ
