Fresas integrales

VQJHV_INCH
（Fresa, longitud de corte semi-larga, 4 hélices, ángulo de hélice variable）

VQJHVD5/16 EDP:690953

Información sobre productos

  • Las fresas con control de vibración VQ reducen la vibración y ofrecen un rendimiento estable en materiales difíciles de cortar y aplicaciones con voladizos de gran tamaño.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Existencia
Unidad de longitud I

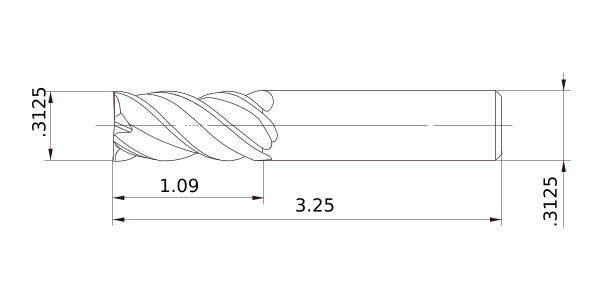

DC .3125
DCON .3125
LF 3.25
APMX 1.09
Peripheral effective cutting edge count: ZEFP 4
Tolerancia máx. de diámetro de filo de corte 0
Tolerancia mín. de diámetro de filo de corte -.0008
Recubrimiento VQ
Modelo 2D (DXF)
Nombre datos CAD Descargar
VQJHVD5-16
