Fresas integrales >VQ4XLRB_INCH >VQ4XLRBDU030R005N5D

Fresas integrales

VQ4XLRB_INCH
（Fresa tórica, Longitud de corte corta, 4 hélices, Cuello largo）

VQ4XLRBDU030R005N5D EDP:23978485

Información sobre productos

  • Mejor eficiencia por la evacuación de virutas adoptando el recubrimiento VQ.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Existencia

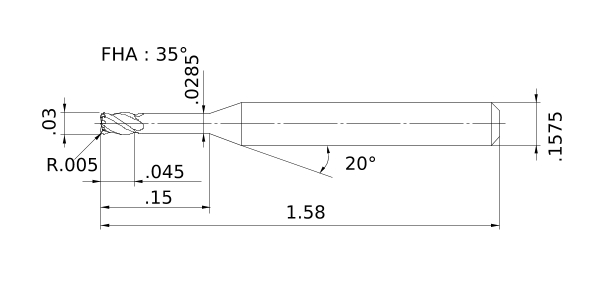

Unidad de longitud I
DC .03
DCONMS .1575
DN .0285
BHTA2 20°
LF 1.58
LU .15
APMX .045
FHA 35°
RE .005
Peripheral effective cutting edge count: ZEFP 4
Tolerancia máx. de diámetro de filo de corte 0
Tolerancia mín. de diámetro de filo de corte -.0008
Recubrimiento VQ
Modelo 2D (DXF)
Nombre datos CAD Descargar
VQ4XLRBDU030R005N5D
CAD
