Turning Insert >CCMT21.52SW

Turning Insert

CCMT21.52SW EDP:23623309

Product Information

The actual product may differ from the displayed image.

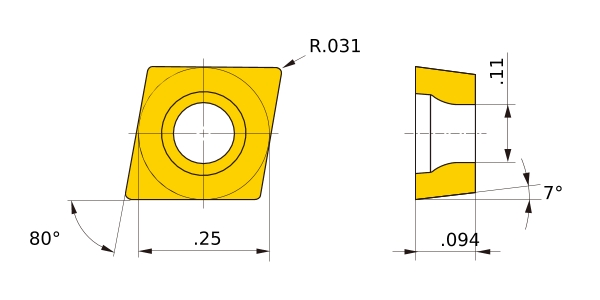

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade MC6125
ANSI CCMT21.52SW
Sales unit 10
Hand N
Stock
Unit of Length I
D1 .11
IC .25
EPSR 80°
S .094
RE .031
Breaker SW
Classification of Grades
Coated・Carbide MC6115
Coated・Carbide MC6135
2D Model (DXF)
CAD data name Download
CC060208N
CAD

3D Detail Model (STP,STL)
CAD data name Download
CC060208N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
