Punte > DFAS-E

Punte

DFAS-E
（PUNTE IN METALLO DURO A FONDO PIANO ELEVATA EFFICIENZA IN UN AMPIO CAMPO DI APPLICAZIONI）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • Foratura ad alta efficienza in diverse applicazioni

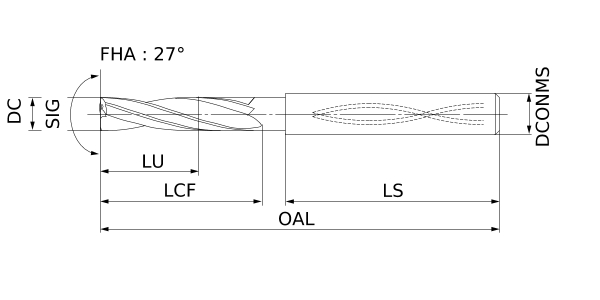

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo1 [Apri]

Tipo2 [Apri]

  1 2 3 4 5
Numero ordine Tipo CAD Tipo di refrigerante Mano Nome del grado Grado Magazzino
DFAS0300X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0310X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0320X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0330X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0340X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0350X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0360X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0370X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0380X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0390X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0400X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0410X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0420X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0430X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0440X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0450X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0460X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0470X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0480X03S060E Tipo2 CAD Interno   Metallo duro DP102A
DFAS0490X03S060E Tipo2 CAD Interno   Metallo duro DP102A
D1 IC DMIN CUTDIA DAXX DC DC1 DC2 ld LU BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 L3 LBB CDX L20 LDRED L15 LCF L2 LH L19 LPR L1 L L24 FLGT LF CBDP OAL D4 DCON D2 DCX D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 D8 DAH DAH1 DAH2 DCCB CNT D9 B L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX ap APMX HTB DCN CDI DCINX BDX CWX LBX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Rompitrucioli Uso corpo Lama modulare Numero inserto DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
3 3 9 180° 14 62 40.4 27° 2   6
3.1 3 9.3 180° 16 62 38.6 27° 2   6
3.2 3 9.6 180° 16 62 38.8 27° 2   6
3.3 3 9.9 180° 16 62 39 27° 2   6
3.4 3 10.2 180° 16 62 39.1 27° 2   6
3.5 3 10.5 180° 16 62 39.3 27° 2   6
3.6 3 10.8 180° 17 62 38.5 27° 2   6
3.7 3 11.1 180° 17 62 38.7 27° 2   6
3.8 3 11.4 180° 18 66 41.9 27° 2   6
3.9 3 11.7 180° 18 66 42.1 27° 2   6
4 3 12 180° 18 66 42.3 27° 2   6
4.1 3 12.3 180° 20 66 40.5 27° 2   6
4.2 3 12.6 180° 20 66 40.6 27° 2   6
4.3 3 12.9 180° 20 66 40.8 27° 2   6
4.4 3 13.2 180° 20 66 41 27° 2   6
4.5 3 13.5 180° 20 66 41.2 27° 2   6
4.6 3 13.8 180° 21 66 42.3 27° 2   6
4.7 3 14.1 180° 21 66 42.4 27° 2   6
4.8 3 14.4 180° 22 66 41.4 27° 2   6
4.9 3 14.7 180° 22 66 41.5 27° 2   6
  1 2 3 4 5

Magazzino

:Giacenze disponibili.
:Nessuna giacenza, prodotto solo su ordinazione.
:Giacenze disponibili. Da sostituirsi con nuovi prodotti.
:Giacenze disponibili in Giappone.

  • Condizione di taglio consigliato
