Punte >DFAS-E >DFAS0380X03S060E

Punte

DFAS-E
（PUNTE IN METALLO DURO A FONDO PIANO ELEVATA EFFICIENZA IN UN AMPIO CAMPO DI APPLICAZIONI）

DFAS0380X03S060E

Informazioni sul prodotto

  • Foratura ad alta efficienza in diverse applicazioni

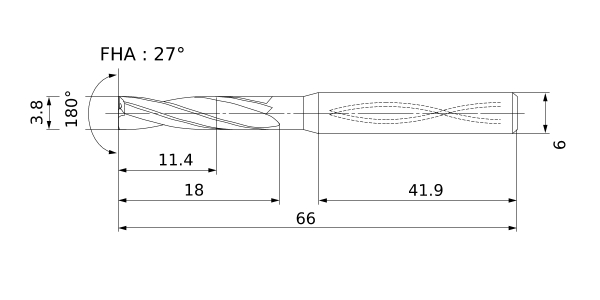

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Apri ]

Tipo   [Apri ]

Diametro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Mano R
Magazzino
Unità di lunghezza M
DC 35
DCON 32
KAPR 90°
RMPX 6
LF 260
LH 45
APMX 15
GAMP +17°
GAMF +23°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
RPMX 15400
