Frezy palcowe(Z płytkami wieloostrzowymi)

AJX
（OBRÓBKA UNIWERSALNA）

AJX12R403SA42L

Informacje o produkcie

  • Ekonomiczne dzięki możliwości użycia 3 krawędzi skrawających.
  • Zalecana do obróbki z dużymi posuwami.
  • Doskonałe odprowadzanie wióra dzięki normalizacji kanału doprowadzenia chłodziwa.
  • Wysoka sztywność dzięki zastosowaniu mechanizmu podwójnego zamocowania.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Typ   [Rozstrzelony ]

Typ   [Rozstrzelony ]

Średnica (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Wersja R
Dostępność

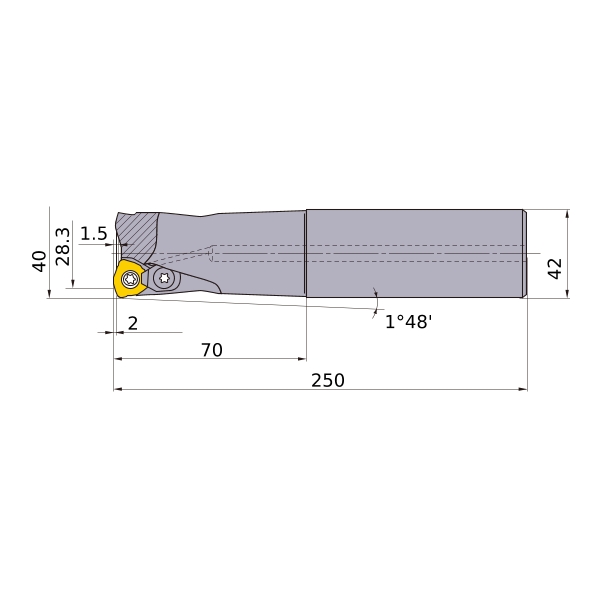

Jednostka długości M
AZ 1.5
DC 28.3
DCX 40
DCON 42
B2 1°48'
RMPX 3.0
LF 250
LH 70
APMX 2
GAMP +8°
GAMF -4°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
