  • Średnica rdzenia korpusu frezu na płytki mocowane stycznie jest większa niż w narzędziach z płytkami mocowanymi promieniowo,
  • JEDNO NARZĘDZIE DO WIELU ZASTOSOWAŃ

The actual product may differ from the displayed image.
For details, please check the dimensions below.

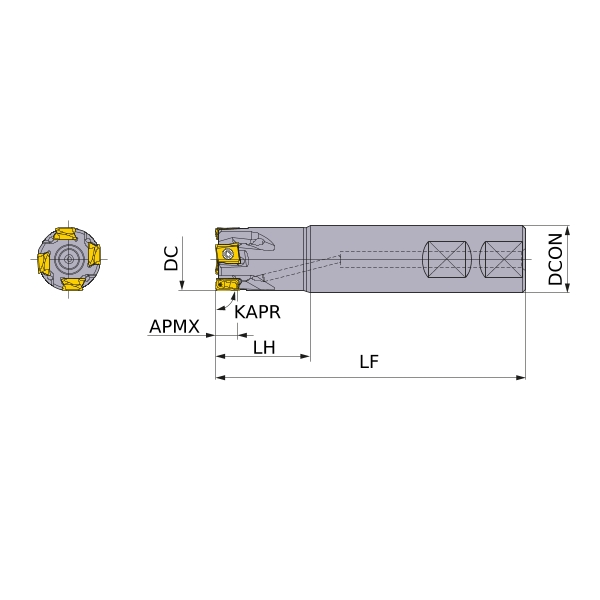

Typ1 [Rozstrzelony ]

Typ2 [Rozstrzelony ]

  1
Numer zamówieniowy Typ CAD Typ chłodziwa Wersja Nazwa klasy (gatunku) Klasa (Gatunek) Dostępność
VPX200R1602WA16M Typ1 CAD R
VPX200R1602WA16S Typ2 CAD R
VPX200R2002WA20M Typ1 CAD R
VPX200R2002WA20S Typ2 CAD R
VPX200R2003WA20M Typ1 CAD R
VPX200R2003WA20S Typ2 CAD R
VPX200R2503WA25M Typ1 CAD R
VPX200R2503WA25S Typ1 CAD R
VPX200R2504WA25M Typ1 CAD R
VPX200R2504WA25S Typ1 CAD R
VPX200R3203WA32M Typ1 CAD R
VPX200R3203WA32S Typ1 CAD R
VPX200R3204WA32M Typ1 CAD R
VPX200R3204WA32S Typ1 CAD R
VPX200R3205WA32M Typ1 CAD R
VPX200R3205WA32S Typ1 CAD R
R PRFRAD Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge D1 IC DMIN CUTDIA DAXX DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 ap APMX HTB DCN CDI DCINX BDX CWX LBX L1 L L24 FLGT CBDP OAL LPR L2 LH L19 LU LF D4 DCON D2 DCX D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L3 LBB CDX L20 LDRED L15 LCF L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Łamacz Użytkowanie korpus Lokator Numer płytki DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
2 2 2 16 8 37 85 16 0.11   90°
2 2 2 16 8 25 73 16 0.09   90°
2 2 2 20 8 50 100 20 0.2   90°
2 2 2 20 8 30 80 20 0.17   90°
3 3 3 20 8 50 100 20 0.2   90°
3 3 3 20 8 30 80 20 0.16   90°
3 3 3 25 8 59 115 25 0.37   90°
3 3 3 25 8 35 91 25 0.29   90°
4 4 4 25 8 59 115 25 0.37   90°
4 4 4 25 8 35 91 25 0.29   90°
3 3 3 32 8 65 125 32 0.68   90°
3 3 3 32 8 45 105 32 0.58   90°
4 4 4 32 8 65 125 32 0.68   90°
4 4 4 32 8 45 105 32 0.57   90°
5 5 5 32 8 65 125 32 0.68   90°
5 5 5 32 8 45 105 32 0.57   90°
  1

Dostępność

:Standard magazynowy.
:Niestandardowy, produkowany na specjalne zamówienie.
:Standard magazynowy. Zostanie zastąpiony przez nowe wyroby.
:Na specjalne zamówienie z magazynu w Japonii.

  • Zalecane warunki obróbki

  • Płytka do narzędzi obrotowych
