Głowica frezarska

AHX475S_MM
（OBRÓBKA OGÓLNA）

AHX475S-080A08AR

Informacje o produkcie

  • Siedmiokątna płytka dwustronna.
  • Ekonomiczna płytka z 14 krawędziami skrawającymi.
  • Konstrukcja o podziałce z małym skokiem umożliwia frezowanie z dużym posuwem.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Typ   [Rozstrzelony ]

Typ   [Rozstrzelony ]

Średnica (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Wersja R
Dostępność

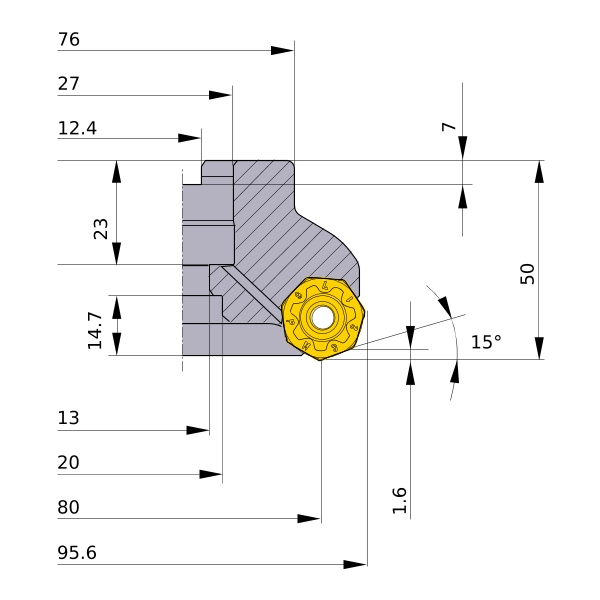

Jednostka długości M
DC 80
DCX 95.6
DCON 27
DCSFMS 76
DAH 13
DCCB 20
KAPR 15°
L8 7
LF 50
CBDP 23
LCCB 14.7
KWW 12.4
APMX 1.6
GAMP -6°
GAMF -12°
WT 1.6
Peripheral effective cutting edge count: ZEFP 8
2D Model (DXF)
Nazwa modelu CAD Pobierz
AHX475S-080A08AR
