Płytki do toczenia >NP-TPGB110308FS3

Płytki do toczenia

NP-TPGB110308FS3

Informacje o produkcie

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Typ   [Rozstrzelony ]

Typ   [Rozstrzelony ]

Średnica (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nazwa klasy (gatunku) CBN
Klasa (Gatunek) MB8110
ANSI NP-TPGB222-FS3
Wersja N
Dostępność

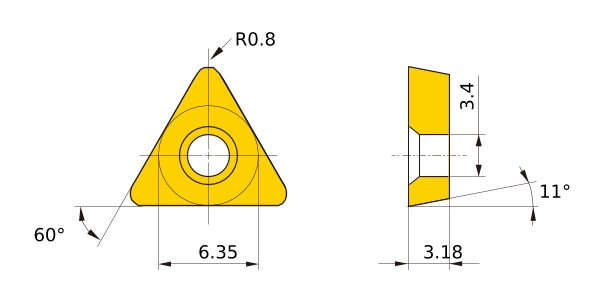

Jednostka długości M
D1 3.4
IC 6.35
EPSR 60°
AN 11°
LE 1.7
S 3.18
RE 0.8
Łamacz flat_top
Klasyfikacja
CBN・Borazon powlekany BC8105
CBN・Borazon powlekany BC8110
CBN・Borazon powlekany BC8120
CBN・Borazon powlekany BC8210
CBN・Borazon powlekany BC5110
CBN・CBN MB8210
CBN・CBN MB4120
2D Model (DXF)
Nazwa modelu CAD Pobierz
TP110308N
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

3D Szczegółowy Model (STP,STL)
Nazwa modelu CAD Pobierz
TP110308N
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Show more

Dostępność

:Standard magazynowy.
:Niestandardowy, produkowany na specjalne zamówienie.
:Standard magazynowy. Zostanie zastąpiony przez nowe wyroby.
:Na specjalne zamówienie z magazynu w Japonii.

  • Wewnętrzna oprawka
