Turning Insert >VBET1103V3L-SR

Turning Insert

VBET1103V3L-SR EDP:272410

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX2525
ANSI VBET22V3LSR
Sales unit 10
Hand L
Stock
Unit of Length M

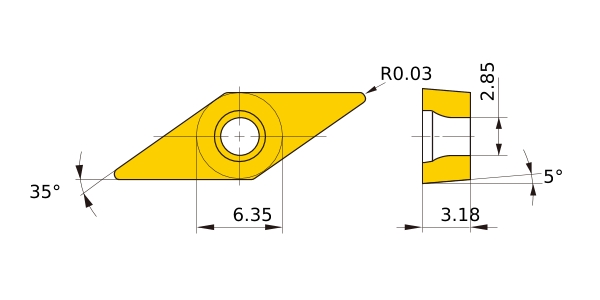

D1 2.85
IC 6.35
EPSR 35°
GAN 30°
AN 5°
LBB 2.5
LE 7.3
S 3.18
RE 0.03
Breaker L-SR
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Carbide HTi10
2D Model (DXF)
CAD data name Download
VB1103V3L
