Turning Insert >VBET22V3LSR

Turning Insert

VBET22V3LSR EDP:273236

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number VBET1103V3L-SR
Sales unit 10
Hand L
Stock
Unit of Length I

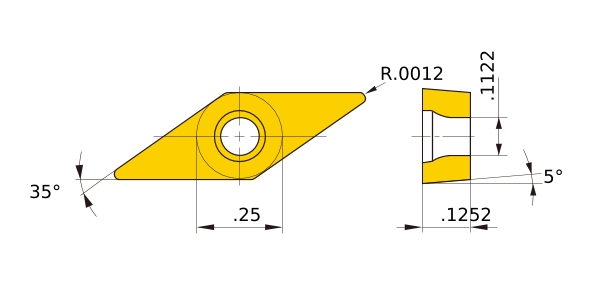

D1 .1122
IC .25
EPSR 35°
GAN 30°
AN 5°
LBB .0984
LE .2874
S .1252
RE .0012
Breaker L-SR
Classification of Grades
Non-coated・Cermet NX2525
Non-coated・Carbide HTi10
3D Detail Model (STP,STL)
CAD data name Download
VB1103V3L
CAD
