Ranurado Serie GY > GYA_D90_INCH

Ranurado Serie GY

GYA_D90_INCH
（Herramienta tipo 90º）


  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • Fijación de placas muy fiable
  • Larga vida de la placa y gran precisión para una amplia variedad de aplicaciones de mecanizado
  • Innovador sistema Tri Lock
  • Estas dimensiones se dan cuando se utiliza una placa de calibrado.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

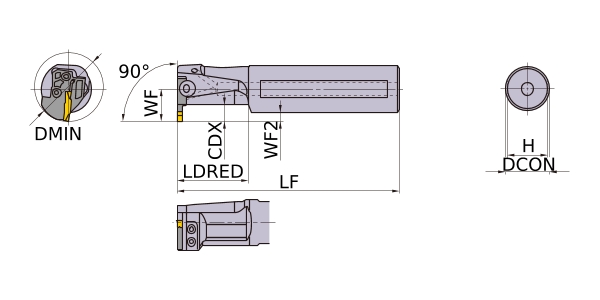

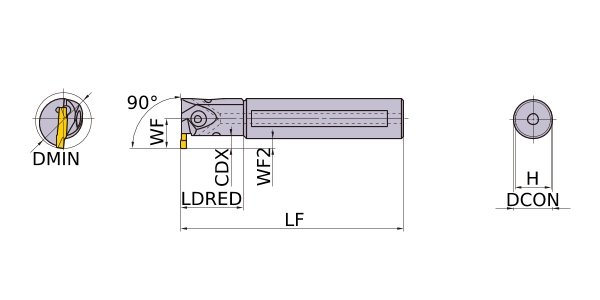

Tipo1 [Extendido]

Tipo2 [Extendido]

Tipo3 [Extendido]

Tipo4 [Extendido]

  1 2 3 4 5 6
Número de referencia Tipo CAD Tipo de refrigerante Mano Nombre de calidad Calidad Existencia
6F1R9D1 Tipo2 CAD R
6F1R9E1 Tipo2 CAD R
6F1R9F1 Tipo2 CAD R
6F2R9D1 Tipo1 CAD R
6F2R9E1 Tipo1 CAD R
6F2R9F1 Tipo1 CAD R
6H1R9D1 Tipo2 CAD R
6H1R9E1 Tipo2 CAD R
6H1R9F1 Tipo2 CAD R
6H1R9G1 Tipo2 CAD R
6H1R9H1 Tipo2 CAD R
6H2R9D1 Tipo1 CAD R
6H2R9E1 Tipo1 CAD R
6H2R9F1 Tipo1 CAD R
6H2R9G1 Tipo1 CAD R
6H2R9H1 Tipo1 CAD R
6K1R3D1 Tipo4 CAD R
6K1R3E1 Tipo4 CAD R
6K1R3F1 Tipo4 CAD R
6K1R3G1 Tipo4 CAD R
ap CDX APMX HTB DCN CDI DCINX BDX CWX LBX D1 IC CUTDIA DAXX DMIN DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 Lama modular Portaherramientas modular D2 DCX D4 DCON D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L1 L L24 FLGT LF CBDP OAL LPR L2 LH L19 LU L3 LBB L20 LDRED L15 LCF L7 LCCB L8 L9 HBKW LS H1 H H2 HBH HF W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Rompevirutas Uso Insertar número DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
.236 1 GYARUS12Q90A-D06 .75 7 1.25 .671 .671 .605 .23 1
.236 1 GYARUS12Q90A-E06 .75 7 1.25 .671 .671 .605 .23 1
.236 1 GYARUS12Q90A-F06 .75 7 1.25 .671 .671 .605 .23 1
.236 1 GYARUS12K90A-D06 .75 5 1.25 .671 .671 .605 .23 1
.236 1 GYARUS12K90A-E06 .75 5 1.25 .671 .671 .605 .23 1
.236 1 GYARUS12K90A-F06 .75 5 1.25 .671 .671 .605 .23 1
.236 1.25 GYARUS16R90B-D06 1 8 1.5 .921 .921 .73 .23 1
.236 1.25 GYARUS16R90B-E06 1 8 1.5 .921 .921 .73 .23 1
.236 1.25 GYARUS16R90B-F06 1 8 1.5 .921 .921 .73 .23 1
.276 1.25 GYARUS16R90B-G07 1 8 1.5 .921 .921 .73 .23 1
.276 1.25 GYARUS16R90B-H07 1 8 1.5 .921 .921 .73 .23 1
.236 1.25 GYARUS16K90B-D06 1 5 1.5 .921 .921 .73 .23 1
.236 1.25 GYARUS16K90B-E06 1 5 1.5 .921 .921 .73 .23 1
.236 1.25 GYARUS16K90B-F06 1 5 1.5 .921 .921 .73 .23 1
.276 1.25 GYARUS16K90B-G07 1 5 1.5 .921 .921 .73 .23 1
.276 1.25 GYARUS16K90B-H07 1 5 1.5 .921 .921 .73 .23 1
.374 1.625 GYM20LA-D10 GYDRUS20S90C-M20L 1.25 10 2 1.171 .875 .25 1
.374 1.625 GYM20LA-E10 GYDRUS20S90C-M20L 1.25 10 2 1.171 .875 .25 1
.374 1.625 GYM20LA-F10 GYDRUS20S90C-M20L 1.25 10 2 1.171 .875 .25 1
.453 1.625 GYM20LA-G12 GYDRUS20S90C-M20L 1.25 10 2 1.171 .875 .25 1
  1 2 3 4 5 6

Existencia

:Existencia en Europa
:A fabricar según demanda
:Existencia en Europa Será reemplazado por nuevos productos.
:Existencia en Japón
